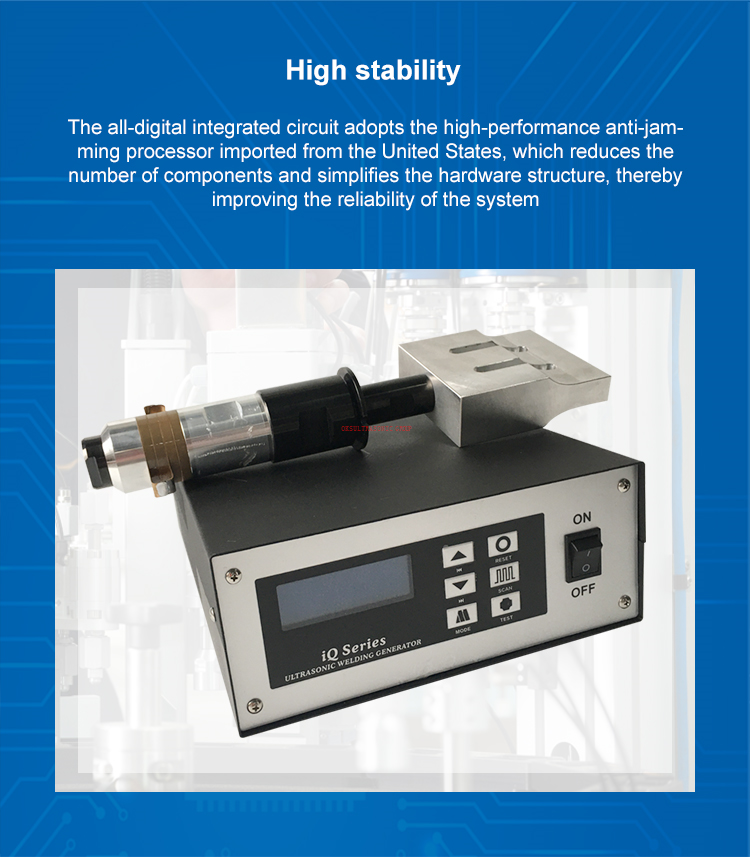

This machine adopts a square sliding block and hard rail anti-backward frame design, SMC pneumatic accessories, touch screen operation, anti-pressure hand structure design, high welding precision, this machine adopts a new type of motor up and down movement adjustment, press to rise The down button can adjust the rise and fall, and the mold adjustment is easier. The electric box adopts automatic frequency sweeping and frequency tracking technology. There is no need for cumbersome coil adjustment and testing. It can be applied after installing the mold, and the bottom plate and flange can be adjusted. Level, level adjustment is simple. Welding depth can be adjusted, mechanical limit + scale fine-tuning function.
Model
Power(W)
Frequency (KHz)
Input Voltage
Working Tool
OKS-UWE-1500W15
1500W
15KHZ
220V-240V
Custom as per requirement,material choosed from Titanium alloy, aluminum, steel
OKS-UWE-1500W20
1500W
20KHZ
220V-240V
OKS-UWE-1800W15
1800W
15KHZ
220V-240V
OKS-UWE-1800W20
1800W
20KHZ
220V-240V
OKS-UWE-2000W15
2000W
15KHZ
220V-240V
OKS-UWE-2600W15
2600W
15KHZ
220V-240V
OKS-UWE-2600W20
2600W
20KHZ
220V-240V
OKS-UWE-3200W15
3200W
15KHZ
220V-240V
OKS-UWE-3200W20
3200W
20KHZ
220V-240V
OKS-UWE-4200W15
4200W
15KHZ
220V-240V
Ultrasonic welding equipment for metal welding, plastic welding, non-woven welding, welcome to consult！
High Power Ultrasonic plastic welding machine For Welding PC and PP and ABS
Ultrasonic plastic welding machine for ultrasonic processing of thermoplastic glue uses the high-frequency friction between the working joints to rapidly generate heat between molecules. When this heat is enough to melt the work, the ultrasonic vibration is stopped. At this time, the working joints It is melted and solidified to complete the processing procedure. The frequencies usually used for plastic processing are 20KHZ and 15KHZ, and their frequencies are outside of human hearing, so they are called ultrasonic waves. Ultrasonic welding machines should be used in the electronics industry, stationery industry, transportation equipment, toys, cosmetics, motors and other materials such as PP, PE, ABS, and acrylic. The 15KHz ultrasonic plastic welding machine has its unique advantages for welding softer PE and PP materials, as well as plastic weldments with extra large diameters and long lengths. It can meet the needs of various products and improve production efficiency and products for users. Contribute to the grade. Product application scope: 1. Plastic toys, water guns, aquarium game consoles, children’s dolls, plastic gifts, etc.; 2. Electronic products: recording, tape cassettes and core wheels, disk shells, mobile phone battery panels and rectifier transformers, switch sockets, Remote control, electronic mosquito swatter, imitation bottle cap, etc. 3. Household appliances: electronic clocks, electric blow dryers, steam iron water tanks, electric kettles, computers, etc. 4. Stationery and daily necessities: sealed containers such as stationery boxes, aquarium rulers, folder middle seams and shells, pen holders, cosmetic box shells, toothpaste tube seals, cosmetic mirrors, thermos cups, lighters, seasoning bottles, etc. 5. Automobiles, motorcycles: batteries, front corner lights, rear lights, meters, reflectors, etc.
Scope of application of ultrasonic welding machine:
Welding, riveting, and embedding of engineering plastic products such as ABS, PA, PP, PET, PC, PS, acrylic, etc.; water bottles, folders, electronic products, toys, electronic watches, musical instruments, chargers, mobile phone shells, CDs Welding, riveting, molding, and nut embedding of plastic parts such as shells.
Specification List
Kinds of Working tool OEM support
