Ultrasonic PCB Generator,Ultrasonic Generator No Lid-Beijing OKSUltrasonic Group Co., Ltd

Application of ultrasonic generator PCB:

Mainly suitable for: cleaning batch workpieces. Such as mechanical parts, mechanical gears, mechanical parts, auto parts, auto parts, auto gears, stainless steel tableware, parts cleaning before plating, watch straps, hardware mechanical parts, filter cores, silicon wafers, lenses, spectacle frames, jewelry, glass Utensils, surgical instruments, motor rotors, stators, exchangers, radiators, furniture accessories, fins, aluminum-iron-copper adzes, ductile iron parts, cylinder parts, shells, piston rings, hydraulic machinery, compressors, engine parts And so on, pressing and punching hardware parts, the cleaning of the production process or the terminal, such as hairdressing silk or hair on the model's head, real hair, etc. Etc. cleaning: high efficiency, good effect, amazing effect on oil stains, wax, dust on the workpiece and fine seams that cannot be cleaned by ordinary methods.

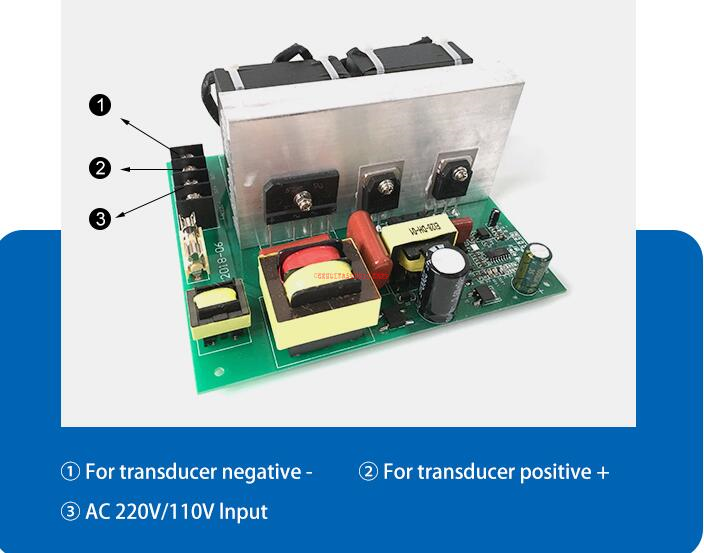

Ultrasonic generator circuit board is assembled with high-quality electronic components:

1. The advanced and reliable protection circuit method greatly improves the reliability of the whole machine

2. FM and frequency automatic compensation, frequency digital display

3. Frequency deviation, working current dual meter indication and protection function

4. Interface plugs can be equipped according to customer requirements

5. Simple structure, easy maintenance, low price and good quality

6,Power Optional from 300W to 3000W ,Frequency custom need, 20khz to 40khz adjust,high frequency 50khz to 170khz,max.to 200khz.

Specification List:

Type	Frequency(KHZ)	Power(W)	Dimension (mm)
OKS-MBJ300	20,25,28,33,40,48, Frequency is adjustable	300W	350×300×140mm
OKS-MBJ600	20,25,28,33,40,48, Frequency is adjustable	600W	350×300×140mm
OKS-MBJ900	20,25,28,33,40,48, Frequency is adjustable	900W	350×300×140mm
OKS-MBJ1000	20,25,28,33,40,48, Frequency is adjustable	1000W	350×300×140mm
OKS-MBJ1200	20,25,28,33,40,48, Frequency is adjustable	1200W	350×300×140mm
OKS-MBJ1300	20,25,28,33,40,48, Frequency is adjustable	1300W	350×300×140mm
OKS-MBJ1500	20,25,28,33,40,48, Frequency is adjustable	1500W	350×300×140mm
OKS-MBJ1800	20,25,28,33,40,48, Frequency is adjustable	1800W	350×300×140mm
OKS-MBJ2000	20,25,28,33,40,48, Frequency is adjustable	2000W	350×300×140mm
OKS-MBJ2400	20,25,28,33,40,48, Frequency is adjustable	2400W	350×300×140mm
OKS-MBJ3000	20,25,28,33,40,48, Frequency is adjustable	3000W	350×300×140mm
Ultrasonic PCB generator could to 3000W,welcome send the enquire 300W-3000W Ultrasonic PCB frequency adjustable,with display board Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
