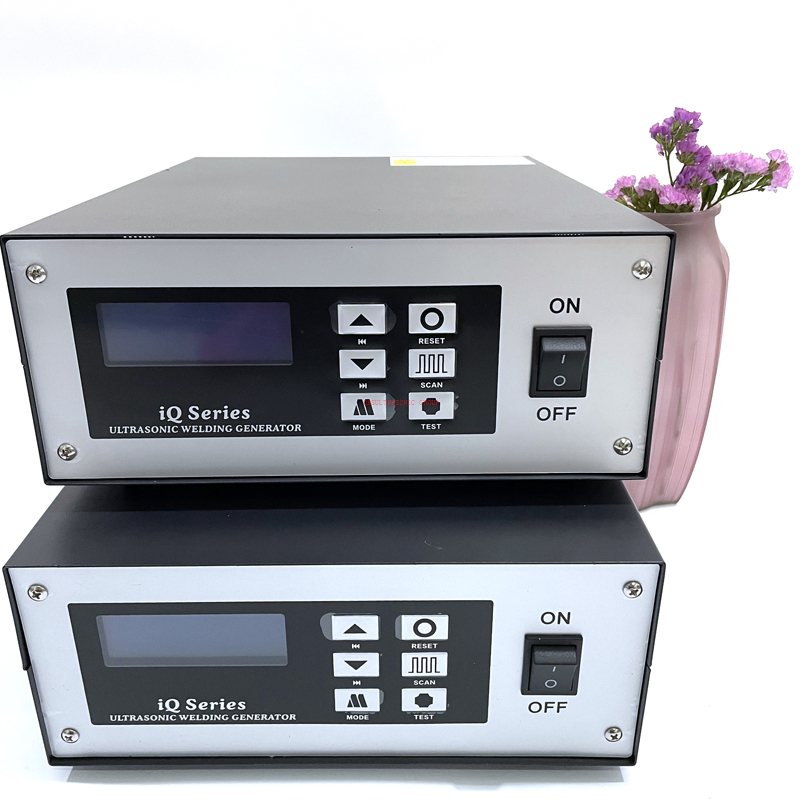

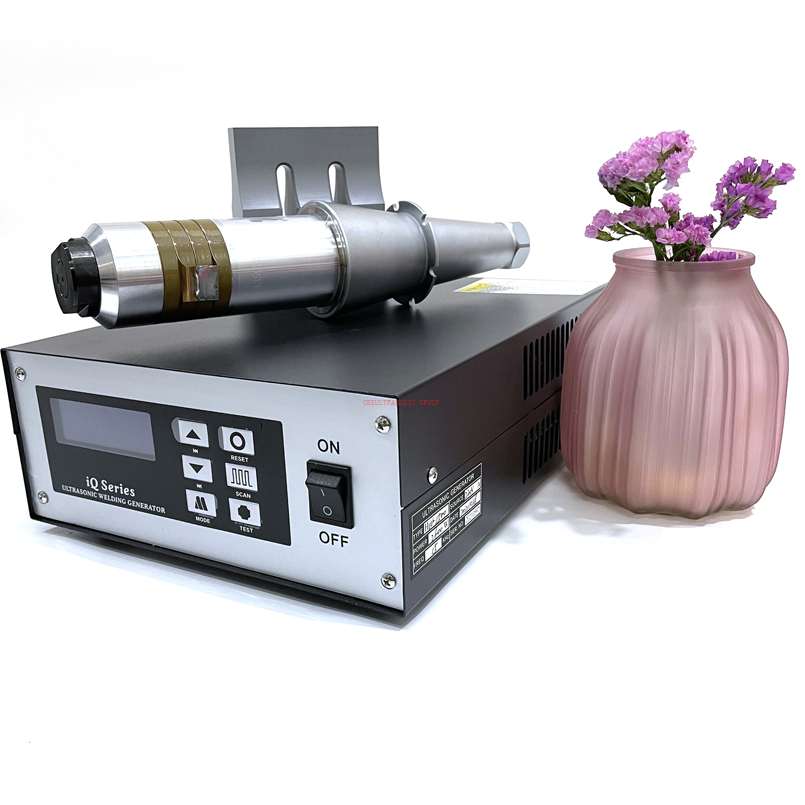

15KHZ 2600W Ultrasonic Welding Generator And Transducer With Booster

The ultrasonic welding generator converts the line voltage into a high-voltage/high-frequency signal and sends it to a converter. In the converter, the piezoelectric crystal is sandwiched between two pieces of titanium metal to vibrate at the frequency of the electrical signal, thereby generating very fast mechanical vibrations with a frequency of 20,000 Hz per second and an amplitude of 18 μm.

Ultrasonic welding has been widely used in sanitary product production lines, such as diapers and other related products. Many fabrics, films, non-woven fabrics and paper products such as feminine products, medical masks, wipes, vacuum bags, filter cloths, etc. will use ultrasonic welding equipment .
Ultrasonic technology is powerful and has a wide range of applications. It can perform operations such as lamination, embossing, punching, cutting, and splicing. Therefore, ultrasonic welding can not only provide low-cost bonding, but also perform other operations, which improves the utilization of equipment.
The frequency range of ultrasound is 20 kHz to 1 GHz, which is inaudible to the human ear. The frequencies commonly used in ultrasonic welding are 20, 30, and 35 kHz.
After long-term unremitting efforts, the company’s technical staff has solved the common problems in the industry by optimizing the structure and parameters of the ultrasonic generator's driving transformer, output transformer, output matching coil, high-voltage matching capacitor, and ultrasonic transducer (ultrasonic vibrator) , The heating degree of the ultrasonic vibration system is greatly suppressed, and the working stability and reliability of the system are greatly improved. After long-term use by customers, the feedback results show that after continuous use of 8H, the load current and amplitude meter only rise slightly, the working condition is good, and the temperature of the ultrasonic generator power board and ultrasonic transducer is within the normal range.

15KHZ 2600W Ultrasonic Welding Generator And Transducer With Booster
